Transform your e-bike with the CYC Heavy-Duty Drivetrain, engineered for exceptional performance and durability. Featuring a robust 5-speed cassette made from high-quality Chromoly steel and Aluminium 7075, it ensures smooth gear transitions and optimal efficiency. Coupled with the reliable AlexRims hub and Microshift components, this drivetrain is built to handle any terrain. It's all for the torque!

System Compatibility
  • All CYC mid-drive motor systems

Inclusions
  • Heavy-Duty 5-Speed Cassette
  • e-Bike Rear Hub
  • Microshift Advent Shifter and Rear Derailleur
  • KMC e9 Turbo EPT Chain

Specifications
  • Cassette
    • Heavy Duty 5-speed Cassette
    • Speed: 5-speed
    • Gearing: 15-30T; 15-17-20-24-30T
    • Material: Chromoly steel, Aluminium 7075
    • Optimum/ operating chainline:
      • 51.7mm centre (20T)
      • 60.7mm final cog (15T)
      • 42.7mm 1st cog (30T)
  • Hub

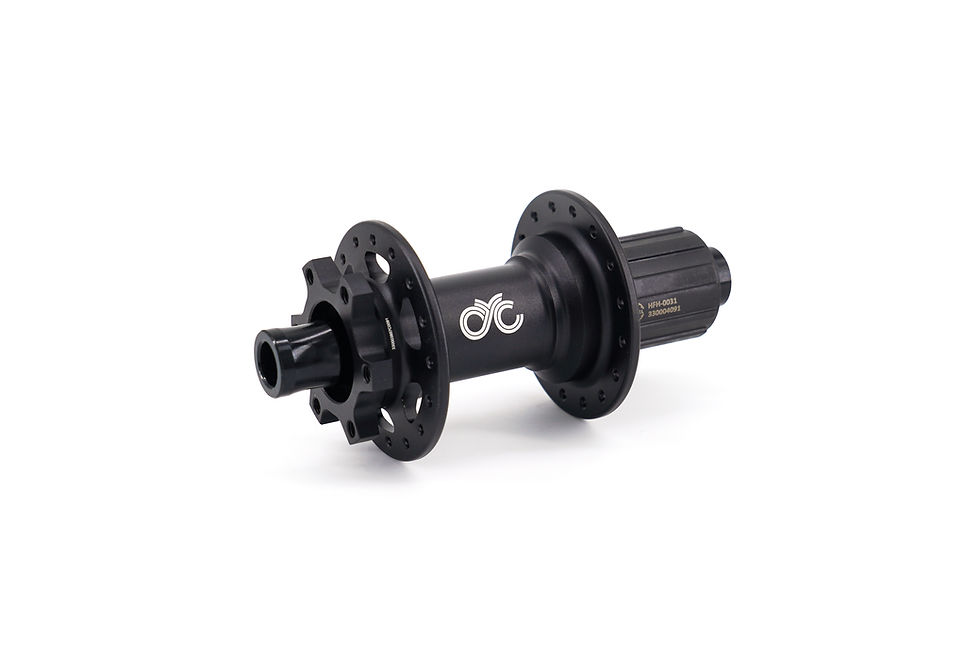

    • AlexRims e-Bike Rear Hub
    • Model: 5SB
    • Engagement Points: 24 (15 degrees)
    • Freehub Type: Rachet-type, Steel Shimano HG (3SB IMPEL 24T)
    • Axle Type: Steel thru-axle
    • Spoke Configuration: J-Bend
    • Brake Compatibility: 6-Bolt Disc
    • Axle Dimensions:
      • 12mm x 148mm OLD
      • or 150/ 157mm OLD
    • Spoke Count: 32H
    • Finish: Sanded Black
  • Shifter
    • Microshift Advent Trail Pro Shifter
    • Single Click
    • Side: Right
    • Clamp Material: Aluminum
  • Deraileur
    • Microshift Advent Super short cage clutch derailleur
    • Model: RD-M6195S
    • Cage Material: Steel
    • Outer Link Material: Aluminum
  • Chain
    • KMC e9 Turbo EPT chain
    • EPT (Anti-rust)
    • 1/2"x11/128"x136 Links

All pricing is listed in USD. Tax not included, except for deliveries to the US.

Heavy-Duty Drivetrain

$368.00Price
Quantity

  • For US customers, please order from our US distributor, ELECTRIFY BIKE CO:  https://www.electrifybike.com/products/cyc-heavy-duty-drivetrain

    Total delivery time (including handling & shipping) is 2 - 3 weeks after confirmed order. Tax not included.

    Payment and shipping to and from Russia, Ukraine, Cuba, Iran, Sudan, Syria, North Korea, Myanmar, Yemen, and the Crimean Peninsula are not currently accepted.

  • This product has a 6-month warranty. Man-made failure is excluded. For detailed information, please refer to our Returns and Refunds  policy. The warranty starts on the day your product is delivered.

    Using this product with a system not supplied by CYC MOTOR LTD will not be supported or warranted.
